Pyrotech Portable High Speed Deluge System

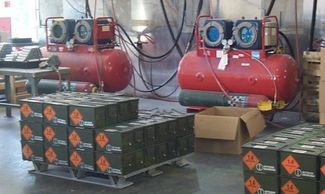

The LFM-7489 Portable High Speed Deluge System (Rapid Response Deluge System) is a completely self-contained water deluge system. It is ideal for use during short production runs, temporary storage of hazardous materials, at remote locations where power is not available or when protection is required during a chemical or hazardous clean-up.

LMF-7489 Features

  •  System response time less than 100 milliseconds
  •  2 High Speed UV/IR detectors with 20 foot cables and swivel clamps
  •  4 CPF-74B pilot operated valves with 20 foot hoses and swivel clamps
  •  Single or dual zone operation
  •  Electrically supervised control circuits for detection, solenoids and monitoring devices
  •  Visual and audible fault indications for low water pressure, low water level, RAM/detector fault, low battery condition
  •  "System Ready" and AC Power indication
  •  Self contained, 120 gallon water tank pressurized by an on board nitrogen supply
  •  Uses RAM modules for Solenoid operation with one button or automatic reset.
  •  Nozzle flow rate of 25 GPM per nozzle
  •  Swivel castors and forklift guides provided for transport.
  •  Dimensions: length-65", width-36", height-54"
  •  Weight (full water tank): approximately 1,300 lbs
  •  Uses on-board 24VDC power supply or can be plugged into 110-220 VAC
  • Meets requirements of Class I, Div II, Groups C and D, plus Class II, Div II, groups E, F, and G.
  • Made in USA
  • Contact Pyrotech for a complete specification.
